Mahsulotlar tavsifi
№1 Yaxshi ishlash
Yukni sezuvchi gidravlik tizim
Yukga sezgir gidravlik tizim yonilg'i sarfini kamaytirish uchun dvigatel ishlamay qolganda vilkani to'liq yuk bilan ko'tarishni ta'minlaydi.
Barqaror
Mashina barqaror turishi uchun tortishish markazi orqa va pastki qismga o'tkaziladi.
№2 Xavfsiz va ishonchli

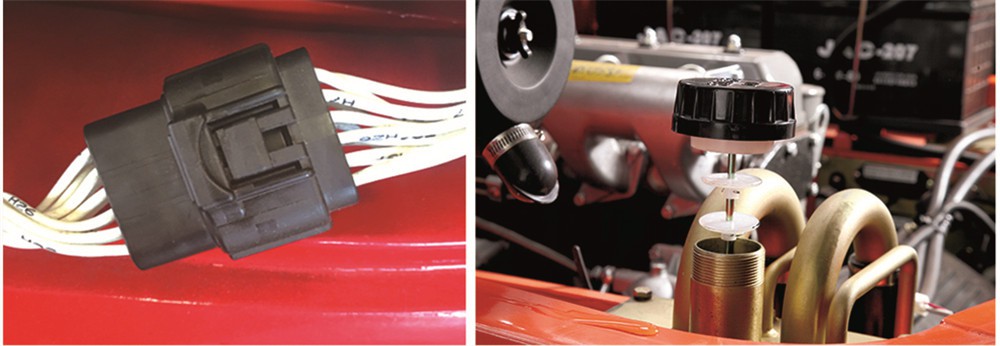

Dvigatelning elektr tizimi ovqatga chidamli konnektorlarni qabul qiladi
Import qilingan suv o'tkazmaydigan konnektorlar yanada ishonchli. Suvga chidamli IP65 darajasi
Oqishni kamaytirish uchun yoqilg'i va moy baklarining o'rnatilgan qopqog'i
№3 Kam shovqin
Past tebranish Sanoatning etakchi uch darajali zarba assimilyatsiya qilish.
Oson ishlash
Avtomobil sinfidagi qo'l tormozlari xavfsizroq va samaraliroq
Elektr-gidravlik yo'naltiruvchi valf sekin oldinga va orqaga o'zgartiring
2000KG (FD20J)
2500KG (FD25J)
3000KG (FD30J)
3500KG (FD35J)
| Model | FD20J | FD25J | FD30J | FD35J | ||||
| 1 |
Xususiyatlari |
Quvvat turi | kg | Dizel | Dizel | Dizel | Dizel | |
| 2 | Nominal yuk | mm | 2000 | 2500 | 3000 | 3500 | ||
| 3 | Yuklash markazi masofasi | mm | 500 | 500 | 500 | 500 | ||
| 4 | Ko'tarish balandligi | mm | 3000 | 3000 | 3000 | 3000 | ||
| 5 | Erkin ko'tarish balandligi | mm | 190 | 190 | 130 | 145 | ||
| 6 | Vilka o'lchami | LxWxT | mm | 1070x122x40 | 1070x122x40 | 1070x125x45 | 1070x125x45 | |
| 7 | Mastning egilish burchagi | FR/RR | 6//12 | 6//12 | 6//12 | 6//12 | ||
| 8 | Minimal burilish radiusi | mm | 2245 | 2300 | 2500 | 2575 | ||
| 9 | Minimal to'g'ri burchakli stacking yo'lak kengligi | mm | 4021 | 4076 | 4285 | 4370 | ||
| 10 | Minimal to'g'ri burchakli yo'lak kengligi | mm | 2240 | 2295 | 2495 | 2570 | ||
| 11 | Minimal erni tozalash | mm | 115 | 115 | 135 | 135 | ||
| 12 | Yuqori qo'riqchining balandligi | mm | 2090 | 2090 | 2105 | 2105 | ||
| 13 | Chiqib ketish (FR) | mm | 476 | 476 | 485 | 495 | ||
| 14 |
Ishlash |
Maksimal sayohat tezligi | To'liq yuk | km/soat | 19 | 19 | 19 | 19 |
| 15 | Maksimal ko'tarish tezligi | To'liq yuk | mm/s | 530 | 490 | 460 | 430 | |
| 16 | Maksimal tortishish | To'liq yuk | KVt | 17 | 17 | 23.5 | 19 | |
| 17 | Baholash qobiliyati | % | 20 | 20 | 20 | 20 | ||
| 18 |
O'lchamlari |
Umumiy uzunlik | Vilkalarsiz | mm | 2535 | 2595 | 2740 | 2725 |
| 19 | Umumiy kenglik | mm | 1150 | 1150 | 1150 | 1150 | ||
| 20 | Maksimal ko'tarishda vilkalar balandligi (orqa o'rindiq bilan) | mm | 4020 | 4020 | 4255 | 4230 | ||
| 21 | Mast balandligi | mm | 1995 | 1995 | 2080 | 2120 | ||
| 22 |
Shassi |
Shinalar |
Old g'ildirak | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-14PR | 28x9-15-14PR | |
| 23 | Orqa g'ildirak | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
| 24 | G'ildirak bazasi | mm | 1600 | 1600 | 1700 | 1700 | ||
| 25 | Bog'lanish | Old g'ildirak / orqa g'ildirak | mm | 970/970 | 970/970 | 1000/970 | 1000/970 | |
| 26 | O'z vazni | Yuksiz | kg | 3400 | 3800 | 4300 | 4820 | |
| 27 |
Haydash |
Batareya | Voltaj / quvvat | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 |
| 28 |
Dvigatel |
Model | AK-C240PKJ-30 | AK-C240PKJ-30 | AK-C240PKJ-30 | AK-C240PKJ-30 | ||
| 29 | Nominal chiqish | kVt/min | 34.3~ 36.5/2500 | 34.3~ 36.5/2500 | 34.3~ 36.5/2500 | 34.3~ 36.5/2500 | ||
| 30 | Nominal moment | Nm/rpm | 137.7/1800 | 137.7/1800 | 137.7/1800 | 137.7/1800 | ||
| 31 | Teshik x zarbasi | mm | 86x102 | 86x102 | 86x102 | 86x102 | ||
| 32 | Tsilindrlar soni | 4 | 4 | 4 | 4 | |||
| 33 | Siqilish | L | 2.369 | 2.369 | 2.369 | 2.369 | ||
| 34 | Yoqilg'i bakining hajmi | l | 60 | 60 | 60 | 60 | ||
| 35 | Transmissiyalar (FWD/RWD) | 1/1 elektro-gidravlik yo'nalishli valf | ||||||
| 36 | Ish bosimi | Mpa | 18.5 | |||||
| 37 |
Qo'shimcha |
Shinalar turi (FR/RR) | Pnevmatik | Pnevmatik | Pnevmatik | Pnevmatik | ||
| 38 | G'ildiraklar soni (FR/RR) | dona | 2/2 | 2/2 | 2/2 | 2/2 | ||
| 39 | Tezlikni pasaytirish (to'liq yuk) | mm/s | 450 | 450 | 500 | 350 | ||
| 40 | Tezlikni pasaytirish (yuksiz) | mm/s | 400 | 400 | 490 | 340 | ||
| 41 | Aks yukini taqsimlash (to'liq yuk) (FR/RR) | kg | 4752/648 | 5544/756 | 6340/920 | 7040/1080 | ||
| 42 | Aks yukini taqsimlash (fno yuk) (FR/RR) | kg | 1530/1870 | 1710/2090 | 1700/2580 | 1720-3100 | ||
Ixtiyoriy dvigatel
| Ishlab chiqaruvchi | Quvvat turi | Model | Tsilindrlar soni | Teshik x zarbasi | Jami siljish | Nominal chiqish/RPM | Nominal moment/rpm | Emissiya standarti | Amaldagi yuk ko'taruvchi yuk mashinasi | Dvigatel TURINI TANLASH VA PARAMETRLARI | ||||
| mm | L | Kw/min | Nm/rpm | FD20J | FD25J | FD30J | FD35J | |||||||
| 1 | Nissan, Yaponiya | Benzin | K21/LPG | 4 | 83x100 | 2.164 | 31.2/2250 | 143.7/1600 | √ | √ | 2-2.5T | |||
| 2 | Nissan, Yaponiya | Benzin | K25/LPG | 4 | 89x 100 | 2.488 | 37.4/2300 | 176.5/1600 | √ | √ | √ | √ | 2-3.5T | |
| 3 | Isuzu, Yaponiya | Dizel | C240PKJ-30 | 4 | 86x102 | 2.369 | 34.3 ~ 36.5/2500 | 137.7/1800 | Evropa Ittifoqi bosqichi IllA | √ | √ | √ | √ | 2-3.5T |
| 4 | Isuzu, Yaponiya | Dizel | 4JG2PE-01 | 4 | 95.4x 107 | 3.059 | 44.9/2450 | 184.7/1700 | Evropa Ittifoqi bosqichi Il | √ | √ | 3-3.5T | ||
| 5 | Yanmar, Yaponiya | Dizel | 4TNE98 | 4 | 98x110 | 3.319 | 42.1/2300 | 177.6 ~ 196.3/1700+ 100 | Yevropa Ittifoqi bosqichi ll, Tier3 | √ | √ | 3-3.5T | ||
| 6 | Yanmar, Yaponiya | Dizel | TNV94L | 4 | 94x110 | 3.054 | 34.6/2400 | 191.5-208.5/150 | Evropa Ittifoqi bosqichi IllA | √ | √ | 3-3.5T | ||
| 7 | Mitsubishi, Yaponiya | Dizel | S4S-455 | 4 | 94x 120 | 3.330 | 35.3/2250 | 170/1700 | Evropa Ittifoqi bosqichi IllA | √ | √ | 3-3.5T | ||
| 8 | Sinchay, Xitoy | Dizel | C490BPG-30 | 4 | 90x105 | 2.670 | 35.3/2250 | 156-1700-1900 | Evropa Ittifoqi bosqichi ll | √ | √ | √ | 2-3.5T | |
| 9 | Sinchay, Xitoy | Dizel | A495BPG-510A | 4 | 95x105 | 2.980 | 42/2650 | 174/1800-2000 | Milliy bosqich ll | √ | √ | 3-3.5T | ||
| 10 | Sinchay, Xitoy | Dizel | 4D27G31 | 4 | 90x 105 | 2.670 | 36.8/2500 | 156-1700-1900 | Milliy bosqich ll | √ | √ | √ | √ | 2-3.5T |
| 11 | Sinchay, Xitoy | Dizel | 4D30G31 | 4 | 95x105 | 2.98 | 36.8/2650 | 174/1800-2000 | Milliy bosqich ll | √ | √ | 3-3.5T | ||
3500KG (FD35J)
| Model | FD20J | FD25J | FD30J | FD35J | ||||
| 1 |
Xususiyatlari |
Quvvat turi | kg | Dizel | Dizel | Dizel | Dizel | |
| 2 | Nominal yuk | mm | 2000 | 2500 | 3000 | 3500 | ||
| 3 | Yuklash markazi masofasi | mm | 500 | 500 | 500 | 500 | ||
| 4 | Ko'tarish balandligi | mm | 3000 | 3000 | 3000 | 3000 | ||
| 5 | Erkin ko'tarish balandligi | mm | 190 | 190 | 130 | 145 | ||
| 6 | Vilka o'lchami | LxWxT | mm | 1070x122x40 | 1070x122x40 | 1070x125x45 | 1070x125x45 | |
| 7 | Mastning egilish burchagi | FR/RR | 6//12 | 6//12 | 6//12 | 6//12 | ||
| 8 | Minimal burilish radiusi | mm | 2245 | 2300 | 2500 | 2575 | ||
| 9 | Minimal to'g'ri burchakli stacking yo'lak kengligi | mm | 4021 | 4076 | 4285 | 4370 | ||
| 10 | Minimal to'g'ri burchakli yo'lak kengligi | mm | 2240 | 2295 | 2495 | 2570 | ||
| 11 | Minimal erni tozalash | mm | 115 | 115 | 135 | 135 | ||
| 12 | Yuqori qo'riqchining balandligi | mm | 2090 | 2090 | 2105 | 2105 | ||
| 13 | Chiqib ketish (FR) | mm | 476 | 476 | 485 | 495 | ||
| 14 |
Ishlash |
Maksimal sayohat tezligi | To'liq yuk | km/soat | 19 | 19 | 19 | 19 |
| 15 | Maksimal ko'tarish tezligi | To'liq yuk | mm/s | 530 | 490 | 460 | 430 | |
| 16 | Maksimal tortishish | To'liq yuk | KVt | 17 | 17 | 23.5 | 19 | |
| 17 | Baholash qobiliyati | % | 20 | 20 | 20 | 20 | ||
| 18 |
O'lchamlari |
Umumiy uzunlik | Vilkalarsiz | mm | 2535 | 2595 | 2740 | 2725 |
| 19 | Umumiy kenglik | mm | 1150 | 1150 | 1150 | 1150 | ||
| 20 | Maksimal ko'tarishda vilkalar balandligi (orqa o'rindiq bilan) | mm | 4020 | 4020 | 4255 | 4230 | ||
| 21 | Mast balandligi | mm | 1995 | 1995 | 2080 | 2120 | ||
| 22 |
Shassi |
Shinalar |
Old g'ildirak | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-14PR | 28x9-15-14PR | |
| 23 | Orqa g'ildirak | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
| 24 | G'ildirak bazasi | mm | 1600 | 1600 | 1700 | 1700 | ||
| 25 | Bog'lanish | Old g'ildirak / orqa g'ildirak | mm | 970/970 | 970/970 | 1000/970 | 1000/970 | |
| 26 | O'z vazni | Yuksiz | kg | 3400 | 3800 | 4300 | 4820 | |
| 27 |
Haydash |
Batareya | Voltaj / quvvat | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 |
| 28 |
Dvigatel |
Model | AK-C240PKJ-30 | AK-C240PKJ-30 | AK-C240PKJ-30 | AK-C240PKJ-30 | ||
| 29 | Nominal chiqish | kVt/min | 34.3~ 36.5/2500 | 34.3~ 36.5/2500 | 34.3~ 36.5/2500 | 34.3~ 36.5/2500 | ||
| 30 | Nominal moment | Nm/rpm | 137.7/1800 | 137.7/1800 | 137.7/1800 | 137.7/1800 | ||
| 31 | Teshik x zarbasi | mm | 86x102 | 86x102 | 86x102 | 86x102 | ||
| 32 | Tsilindrlar soni | 4 | 4 | 4 | 4 | |||
| 33 | Siqilish | L | 2.369 | 2.369 | 2.369 | 2.369 | ||
| 34 | Yoqilg'i bakining hajmi | l | 60 | 60 | 60 | 60 | ||
| 35 | Transmissiyalar (FWD/RWD) | 1/1 elektro-gidravlik yo'nalishli valf | ||||||
| 36 | Ish bosimi | Mpa | 18.5 | |||||
| 37 |
Qo'shimcha |
Shinalar turi (FR/RR) | Pnevmatik | Pnevmatik | Pnevmatik | Pnevmatik | ||
| 38 | G'ildiraklar soni (FR/RR) | dona | 2/2 | 2/2 | 2/2 | 2/2 | ||
| 39 | Tezlikni pasaytirish (to'liq yuk) | mm/s | 450 | 450 | 500 | 350 | ||
| 40 | Tezlikni pasaytirish (yuksiz) | mm/s | 400 | 400 | 490 | 340 | ||
| 41 | Aks yukini taqsimlash (to'liq yuk) (FR/RR) | kg | 4752/648 | 5544/756 | 6340/920 | 7040/1080 | ||
| 42 | Aks yukini taqsimlash (fno yuk) (FR/RR) | kg | 1530/1870 | 1710/2090 | 1700/2580 | 1720-3100 | ||
Ixtiyoriy dvigatel
| Ishlab chiqaruvchi | Quvvat turi | Model | Tsilindrlar soni | Teshik x zarbasi | Jami siljish | Nominal chiqish/RPM | Nominal moment/rpm | Emissiya standarti | Amaldagi yuk ko'taruvchi yuk mashinasi | Dvigatel TURINI TANLASH VA PARAMETRLARI | ||||
| mm | L | Kw/min | Nm/rpm | FD20J | FD25J | FD30J | FD35J | |||||||
| 1 | Nissan, Yaponiya | Benzin | K21/LPG | 4 | 83x100 | 2.164 | 31.2/2250 | 143.7/1600 | √ | √ | 2-2.5T | |||
| 2 | Nissan, Yaponiya | Benzin | K25/LPG | 4 | 89x 100 | 2.488 | 37.4/2300 | 176.5/1600 | √ | √ | √ | √ | 2-3.5T | |
| 3 | Isuzu, Yaponiya | Dizel | C240PKJ-30 | 4 | 86x102 | 2.369 | 34.3 ~ 36.5/2500 | 137.7/1800 | Evropa Ittifoqi bosqichi IllA | √ | √ | √ | √ | 2-3.5T |
| 4 | Isuzu, Yaponiya | Dizel | 4JG2PE-01 | 4 | 95.4x 107 | 3.059 | 44.9/2450 | 184.7/1700 | Evropa Ittifoqi bosqichi Il | √ | √ | 3-3.5T | ||
| 5 | Yanmar, Yaponiya | Dizel | 4TNE98 | 4 | 98x110 | 3.319 | 42.1/2300 | 177.6 ~ 196.3/1700+ 100 | Yevropa Ittifoqi bosqichi ll, Tier3 | √ | √ | 3-3.5T | ||
| 6 | Yanmar, Yaponiya | Dizel | TNV94L | 4 | 94x110 | 3.054 | 34.6/2400 | 191.5-208.5/150 | Evropa Ittifoqi bosqichi IllA | √ | √ | 3-3.5T | ||
| 7 | Mitsubishi, Yaponiya | Dizel | S4S-455 | 4 | 94x 120 | 3.330 | 35.3/2250 | 170/1700 | Evropa Ittifoqi bosqichi IllA | √ | √ | 3-3.5T | ||
| 8 | Sinchay, Xitoy | Dizel | C490BPG-30 | 4 | 90x105 | 2.670 | 35.3/2250 | 156-1700-1900 | Evropa Ittifoqi bosqichi ll | √ | √ | √ | 2-3.5T | |
| 9 | Sinchay, Xitoy | Dizel | A495BPG-510A | 4 | 95x105 | 2.980 | 42/2650 | 174/1800-2000 | Milliy bosqich ll | √ | √ | 3-3.5T | ||
| 10 | Sinchay, Xitoy | Dizel | 4D27G31 | 4 | 90x 105 | 2.670 | 36.8/2500 | 156-1700-1900 | Milliy bosqich ll | √ | √ | √ | √ | 2-3.5T |
| 11 | Sinchay, Xitoy | Dizel | 4D30G31 | 4 | 95x105 | 2.98 | 36.8/2650 | 174/1800-2000 | Milliy bosqich ll | |||||
